Gas leak detectors for ensuring
a secure environment

Rapid & reliable detection of gases

Provides a fast & reliable response by using Catalytic / Pellistor / Semiconductor technology for detecting leak of LPG/PNG/ CNG/ LNG/ Natural Gas/ Flammable Gas.

Certifications:

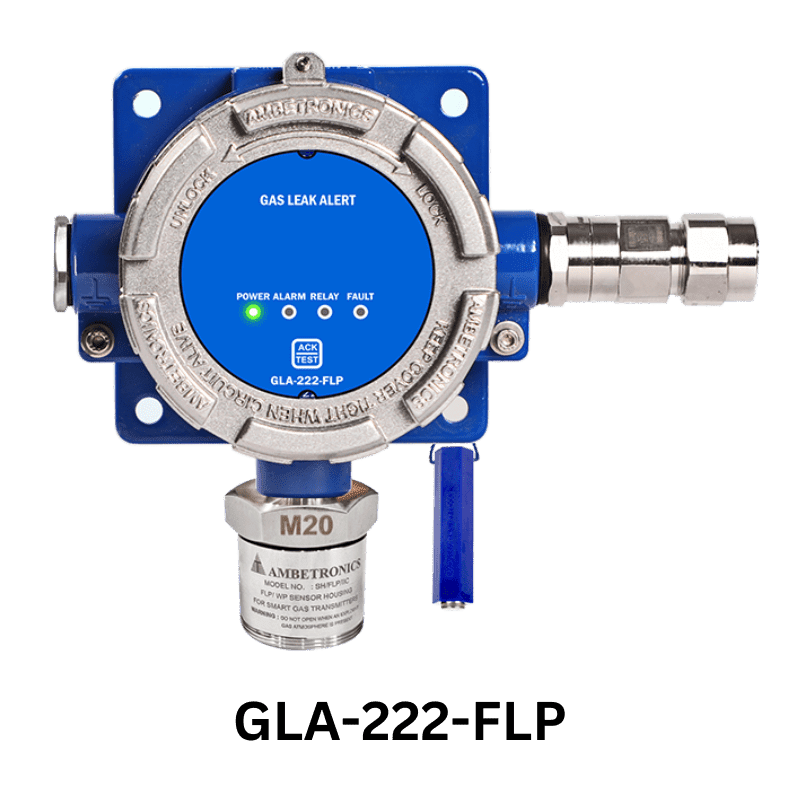

Detects combustible gases like LPG, CNG, PNG, LNG, and other flammable gases using catalytic, pellistor, or semiconductor sensors with fast response time.

Triggers visual alarms via LED and optional audible alarms if a Buzzer Cum Flasher is connected.

Powered by 9–24VDC (100mA) and designed for easy installation in various commercial settings including kitchens, labs, boiler rooms, and gas banks.

Includes test functionality to verify LED and relay operations, with optional relay output (5A/24VDC or 230VAC) for shut-off valve or flasher.

Flameproof cast aluminum enclosure (IP-rated) with multiple mounting options and EX-proof cable gland for use in hazardous environments.

Certifications:

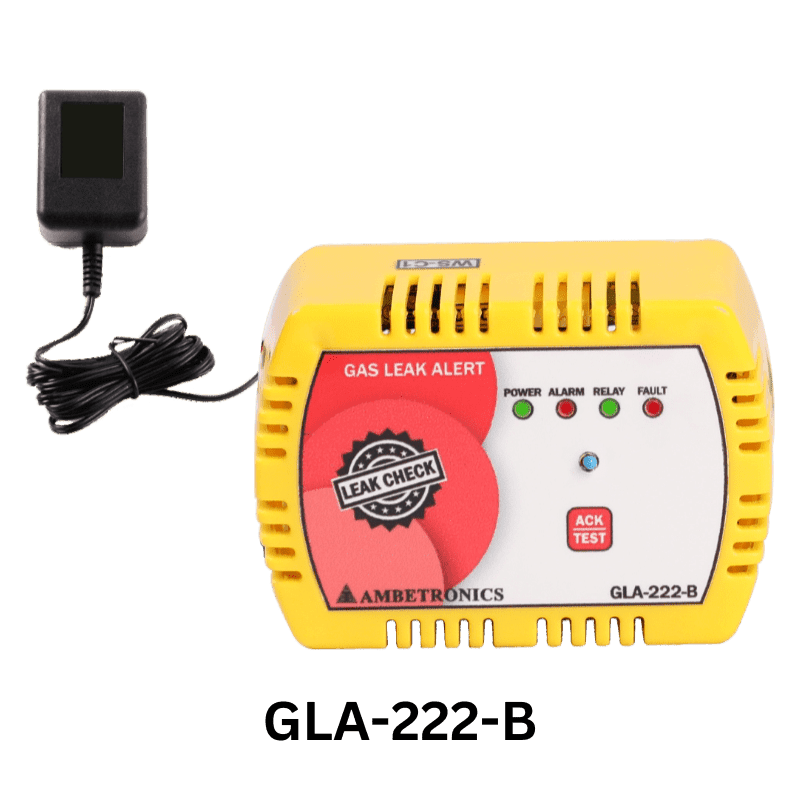

Detects LPG and PNG gas leaks in domestic kitchens using fast-response semiconductor sensors with audible and visual alerts.

Designed for easy wall mounting or plug-in installation with 230VAC power; includes integrated buzzer and LED indicators.

Provides quick detection within 5 seconds for excess leaks and automatically resumes normal mode when safe.

Includes test and acknowledgment functions to verify system status and mute the alarm.

Optional relay output (5A/24VDC) allows connection to shut-off valves for added safety control..

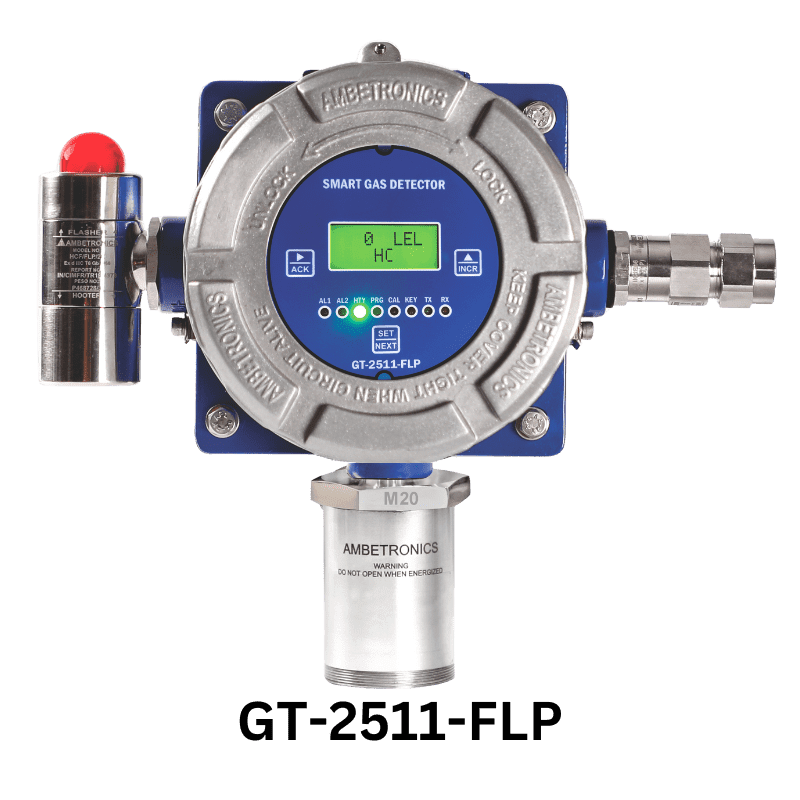

Detects Oxygen, Toxic, Combustible gases, and VOCs with smart pluggable sensor modules like Electrochemical, Catalytic, PID, and NDIR.

Supports 4-20mA output with optional 0-10V, 0-5V, or 0-1V voltage outputs and MODBUS RTU via RS-485.

Displays gas concentration on LCD and shows alerts like ‘Sensor Open’, ‘Over Range’, and ‘Cal Due’, with configurable alarm relays.

Flameproof, IP68-rated enclosure made of cast aluminum with stainless steel sensor holder, certified for hazardous areas.

Widely used in industries like oil & gas, chemical plants, cold storage, and furnaces; offers optional accessories like calibration kits and SCADA software.

Certifications:

The detector uses both UV and IR sensors, enabling it to detect a wide range of fire types, ensuring a high level of accuracy in flame detection.
The Triple Spectrum Design enhances long-distance flame detection while reducing the likelihood of false alarms.
Configuration settings can be adjusted via Bluetooth, HART, or RS-485, providing maximum flexibility for different applications.
Offers 3 SPDT relays for flame detection, auxiliary, and fault signals, as well as analog outputs (0-20mA or 0-10V) and optional HART protocol.

Certifications:
